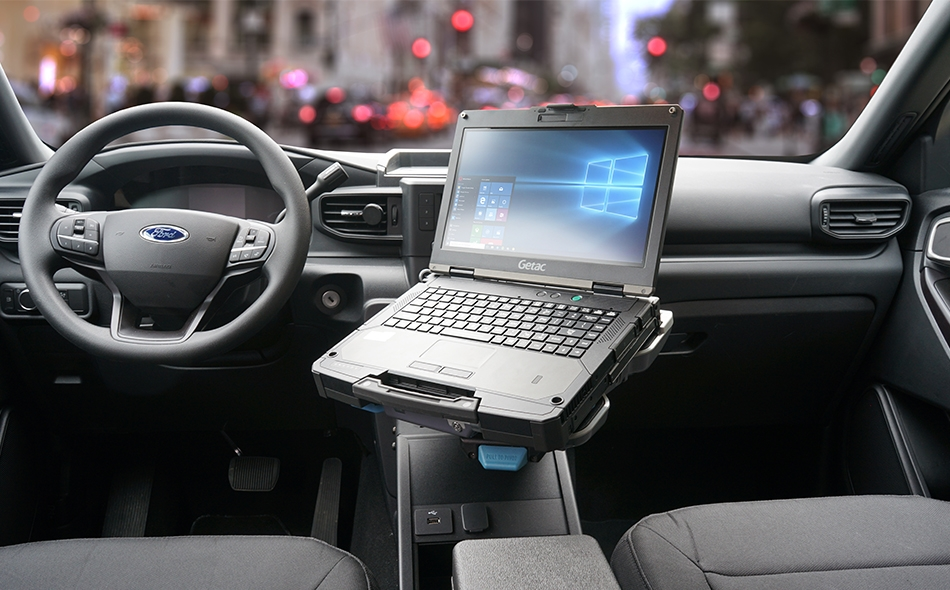

Gamber-Johnson's B360 vehicle laptop docking station accommodates the standard Getac B360 laptop computer and the B360 Pro model. This docking station features multiple ports to connect peripherals, a convenient front-facing release latch and lock to secure your laptop. This dock has TRI RF (SMA) antenna pass-through and comes as a kit bundled with an auto power adapter.
Antenna Pass-Through
- Tri RF (SMA)
Port Replicator
- USB 2.0 (1) 4 Pin Rear-Facing, (2) Front-Facing (500mA)
- USB 3.0 (3) - 9 Pin Rear-Facing (900mA)
- RS232 Serial (1)
- Ethernet (2) RJ45
- VGA (1) D-Sub 9 Pin
- HDMI (1) 19 Pin
- Power Input 19Vdc
Power Supply Included
- Yes, Includes Getac 120W Auto Power Adapter
Features
- Compatible with Getac's B360 and B360 Pro rugged computers
- Getac Certified electronics
- Floating docking connector with steel guide pins to ensure a reliable connection even in the most rugged environments
- Front corner release latch, easily remove the computer by activating the latch
- Access to all computer control buttons and ports while the computer is docked
- Rear-facing I/O ports; integrated cable strain relief and cable management system
- Screen support for additional stability (included)
- Keyed lock for theft deterrence
- VESA 75mm mounting pattern
- Rounded edges to enhance personal safety
- 3-year limited warranty
- Available with NO RF (Item No. 7170-0789-00)
Certificates & Testing
- Getac Certified
- MIL-STD 810G Shock/Vibration Tested
- MIL-STD 810G Environmental Testing: Humidity, High/Low Temperature, (Storage/Operational)
- SAE J1455 Crash Tested
- Cycle Tested: 30K Cycles, Docking Connector, Latching & Locking Mechanisms
- RoHS, FCC, CE, E-Mark
Warranty
- 3-Year Limited Warranty
Kit Includes
- Getac B360 Laptop Vehicle Docking Station
- Screen Support
- Getac 120W Auto Power Adapter
- Mounting Hardware
- Installation Guide
