The X3Finder Heartbeat and Respiration Detection System

Sept. 26, 2019

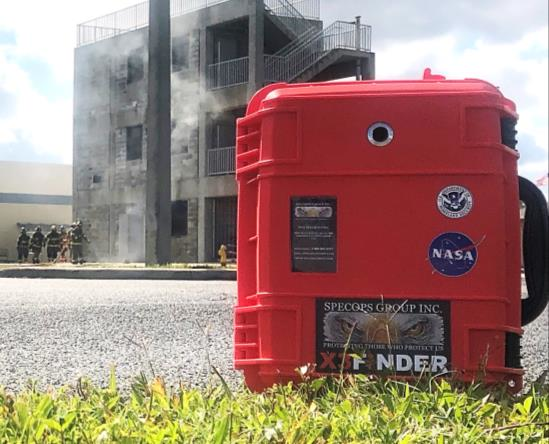

The X3FINDER is a heartbeat and respiration detection system designed for military, law enforcement personnel and search and rescue. X3Finder can see through walls up to 18 inches thick cumulatively and provides critical information about the presence of life and its location.

  • Detects life signs in the open up to 300 feet ( 91 meters)
  • Scans and sees through walls and buildings to detect multiple heartbeats
  • Scans tunnels, caves, mines for antiterrorism and human trafficking
  • Scans containers, trucks, lorries
  • Minimal setup time
  • 24-hour standby time
  • Scans up to 12-hour
  • Simple design familiar to first responders
  • Operates remotely as a standoff device
  • Minimal training needed to operate

The X3Finder system assists search and rescue teams, firefighters and law enforcement. This tool is self-contained, man-portable and operates in most weather conditions. The system has minimal setup time and is ready to scan in approximately sixty seconds. Scan results are displayed in minutes. SpecOps Group's instant-on system keeps the first responder at a constant state of readiness.

The system uses an innovative and simple graphical user interface, designed the software specifically for first responders by SpecOps. Minimal training is required. The company accomplished this by using operational concepts like Automated External Defibrillator (AED) systems. The X3Finder control device is a simple hardened Windows 10 driven unit. A complete X3Finder system comes with a control unit and the remote sensor. However, the software can be loaded on any Windows 10 driven device if the device meets the software specifications. But SpecOps didn't stop there. The team also devised a perimeter scan option allowing the user to now approximate location of life signs by using multiple scans to triangulate the life sign.

This system is designed specifically for the aftermaths of catastrophic global events that result in collapsed buildings and other occupied infrastructures. The system greatly reduces search times resulting in better use of valuable manpower management resources.

The X3Finder was designed to follow the FEMA 508-8 Typed Resource Manual. This lead to the redesign of its power management system. It is designed to last a full 12-hour shift and fully charge in two hours. For SAR units with limited equipment, it was designed to quickly swap out batteries enabling the unit to be handed off for around the clock scanning with no downtime.

SpecOps constantly pushes the limits of technology. Their X3Finder is now small enough to search tunnels, mining operations, and even caves. Constant testing, evaluation, and feedback from our clients is the key to its development.

Features & Specifications

The system's sensors are encased in an impact and IP67-rated case for all weather conditions. X3Finder is man-portable and designed specifically to fit in any overhead compartment for air travel. SpecOps innovations are driven and developed by first responders for first responders.

  • System Type: Low emitting microwave radar
  • Radar Antenna Array: 1 transmitter and 4 receivers
  • Operating Wavelength: 3.15 GHz
  • Wavelength Ranges: 2.4, 3.15, 5 GHz
  • Beam Width/Height: Width =70 degrees / Height = 35 degrees
  • Radioactivity: Meets the ICNIRP-1998 radiation exposure requirement
  • Wi-Fi: IEEE 802.11 b/g/n
  • Power Supply: Charging system, 4-cell, 2.8A @ 12.8V LiFePO4 charger
  • Battery: LiFePO4 13.2V 5sh, 66Wsh
  • Scans Per Charge: Up to 100 scans
  • Standby Time: 24 hours
  • Length of scan: i7 Pro 90 sec, i5 Processor 120 sec on average (varies by scan settings)
  • Life Sign Detection: Multiple victim detection abilities (up to five victims)
  • Target Types: Loose debris, dense debris, and solid debris (concrete), open areas and tunnels
  • Dense Debris Penetration: Up to 9 meters (30 feet)
  • Solid Object Penetration: Up to 45 cm of solid concrete (18 inches)
  • Clear Air Range: Approximately 9 m to 100 m (30 to 330 feet)
  • Temperature range: Ranges from -20 degrees C (+50 degrees C)
  • Display: Windows-based weather-proof tablet or laptop
  • Enclosure: Seahorse 540SE, IP67, MIL-STD810F512.4
  • Available Colors:L Safety Yellow (OSHA) International Orange (SOLAS), Forest Green Camo, Gunmetal Gray
  • Dimensions: 14.9" by 12.13" by 9.58" (37.85 cm by 30.81 cm by 24.33 cm)
  • Weight: 13 pounds (including tablet, depending on installed options)
SpecOps Group Inc. reserves the right to change components and specifications as the technology improves.
