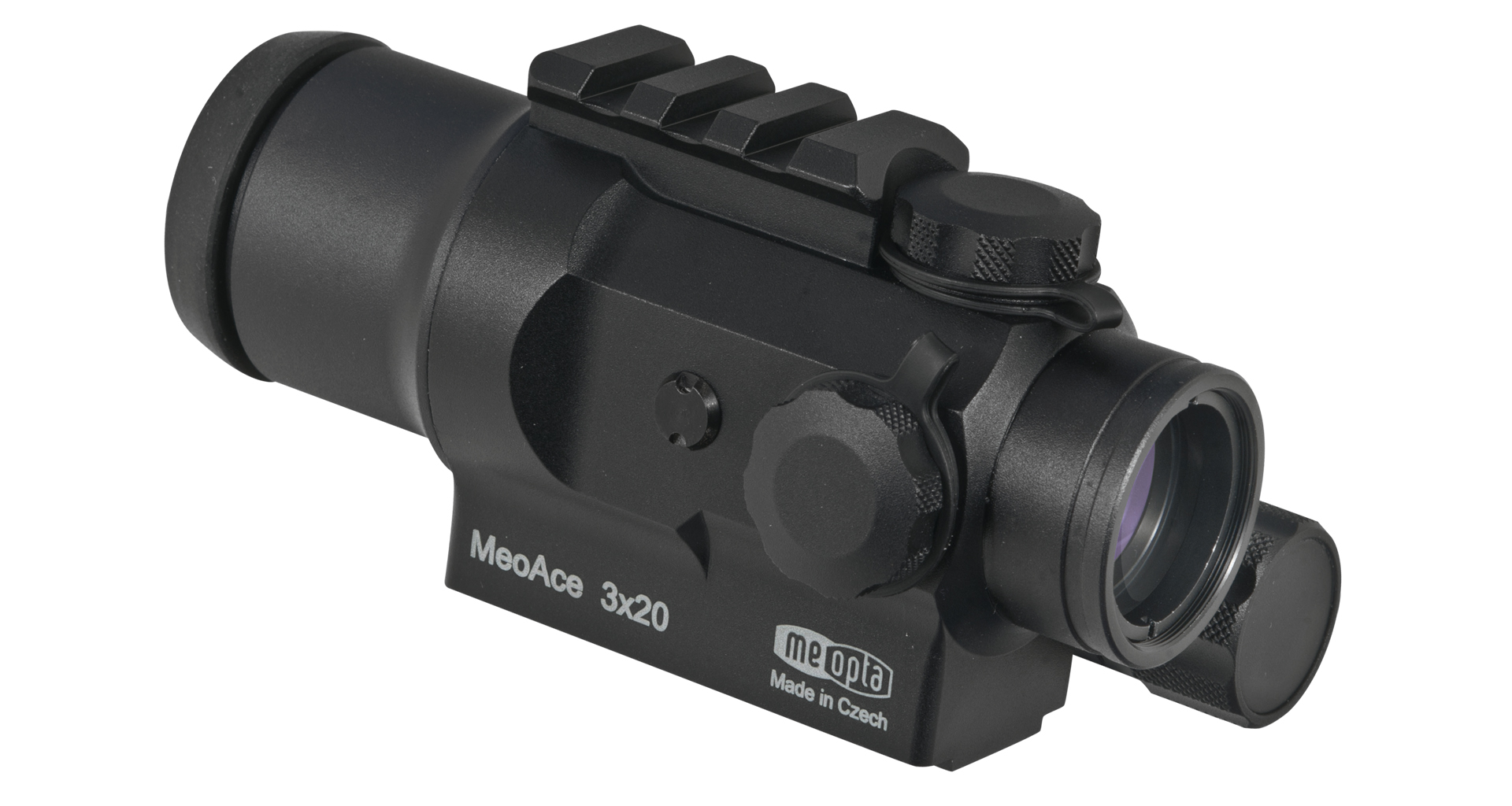

MeoAce 3x20 Tactical Sight

Jan. 22, 2018

The MeoAce 3x20 tactical sight is an illuminated reticle designed for use with rifles chambered in 5.56 NATO and 7.62x39 NATO (or 7.62x51 NATO or 180gr .308 Win when using the 5.56 side of the reticle) and is accurate up to 400 meters.

The MeoAce (Aiming Compact Equipment) sight is night vision compatible and delivers outstanding optical performance.  The illuminated reticle has 12 intensity settings so the brightness level can be adjusted to accommodate ever-changing light and weather conditions in the field.  Meopta’s proprietary MeoBright lens multi-coatings eliminate glare and reflections while the hydrophobic MeoDrop™ lens coatings ensure the highest level of visual clarity in adverse weather conditions, easily repelling rain and snow in addition to skin oils and dirt.


Optional Accessories:

  • Yellow Filter
  • Anti-Reflection Device
  • Anti-Laser Filter
  • Fixed Mount
  • Quick Release Mount
  • Nylon Tactical Case MOLLE
  • Hard Case


  • Magnification: 3 x
  • Objective Diameter: 20 mm
  • Exit Pupil Diameter: 6.7 mm
  • Eye Relief: 65 mm
  • Resolution (SOA): ≤ 13
  • Field of View: 7°
  • Dioptric Correction: ± 4
  • Illuminated Reticle: Yes
  • No. of Intensity Levels: 12
  • Night Vision Compatibility: Yes
  • Integral Transmission Daylight: 87%
  • Integral Transmission Twilight: 83%
  • Elevation Range (MOA): 120
  • Windage Range (MOA): 120
  • Adjustment Increments (MOA): 1
  • Power Supply (V): 1.5-3.6 (1xAA)
  • Battery Lifetime (hours – not on high intensity): Min. 300
  • Automatic Shutdown: 8 hours
  • Recoil Resistance: 500 g
  • Operational Temperature Range: -40 to +140 °F
  • Waterproof: 2 m / 2 hours
  • Max. Length: 4.84 in / 123 mm
  • Max. Height: 2.24 in / 57 mm
  • Max. Width: 2.48 in / 63 mm
  • Weight: 12.35 oz
  • Objective Filter Thread: M26x.05 mm
  • Eyepiece Filter Thread: M30x.05 mm
