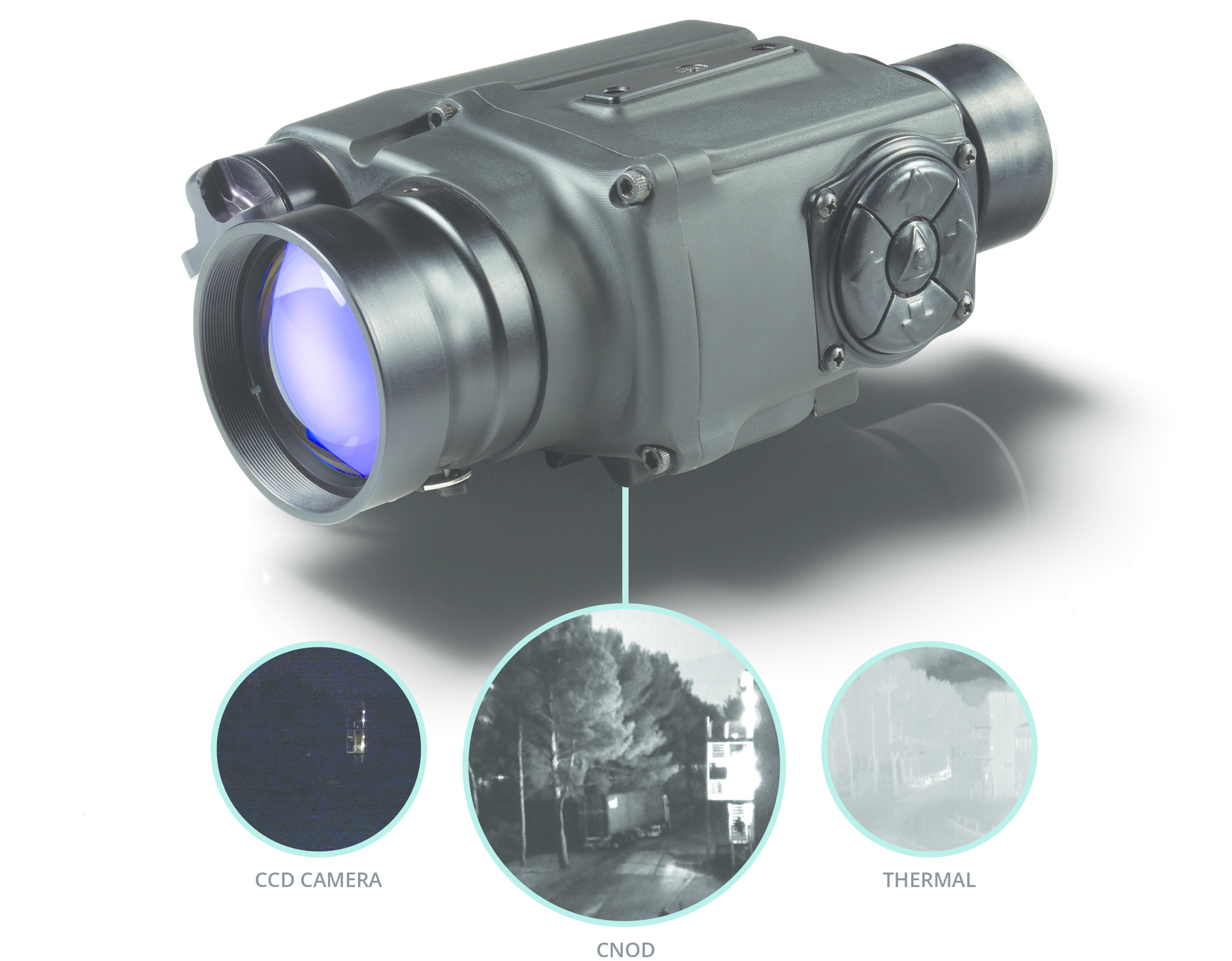

The CNOD (CMOS Night Observation Device) is a high definition sight that enables its operator to see in both bright sun (day) and low light (night), with high contrast and high resolution, in a single device. The CNOD is neither an image intensification system nor a thermal system; it is a digital system. It can be deployed in three ways: as a hand held monocular, as a clip-on, in-line weapon sight for use with your day scope or as a stand-alone weapon sight with reticle of choice. Currently there is no other digital, image intensified night vision or thermal sight on the market that can perform all of these functions.
The integrated, high performance night observation device is proof of RPO’s optical components and assembly capability for its customers. RPO has a proven track record in defense and security, providing the optical components for some of the military’s most advanced night vision systems, due to their expertise in lightweight and high volume production of precision optical systems.
The CNOD is a multi-function imaging system that allows police and SWAT to see in bright light, through urban and background light and into the night. This single, easy-to-use system offers visible and IR wavelengths from 500 to1080 nm, with digital electronic 6x zoom, still and video image capture. Police departments and municipalities benefit from the system’s high performance, high resolution and versatility. The advanced design helps to preserve natural night vision for ground operations and allows for hand-held or weapon-mounted use.
CNOD Technical Specifications*
- Fully digital system, no intensifier tubes
- Monocular, clip-on sight or stand-alone sight
- Wavelength 500nm to 1080nm range
- 6x internal digital zoom
- Sees in bright sun as well as night
- Ability to take pictures and record video
- Hardened for shock all .30 caliber or below
- Accessories to extend range available
- Environmentally tested to applicable sections of Mil-Standard 810G
SENSOR
|
Format
|
1280 columns x 1024 rows
|
|
Pitch
|
9.7 um square
|
|
Light Sensitivity
|
< 5.0mlux
|
|
Spectral Range
|
500nm – 1080 nm
|
OPTICS
|
Field of View
|
Up to 22.2 degree diagonal
|
|
Focal Length
|
40 mm EFL
|
|
F/#
|
1.2
|
|
Minimum Focus
|
10 meters
|
|
Magnification
|
1x unity
|
POWER
|
Runtime
|
> 4 hrs at 23º C / 74°F
|
|
Battery
|
2xCR123
|
|
Switch
|
Off/On/LED illuminator
|
SIZE
|
Weight
|
< 538.7 g / 19 oz.
|
|
Length
|
< 139.7 mm / 5.5”
|
|
Width
|
< 81.28 mm / 3.2”
|
|
Height
|
< 63.5 mm / 2.5”
|
PERFORMANCE
|
Boresight
|
< 2.0 MOA
|
|
Resolution
|
0.834 MOA
|
|
Detect
|
> 750 m
|
|
Recognize
|
> 200 m
|
|
DayscopeMag
|
1x – 14x
|
|
Ezoom
|
1x, 2x, 4x, 6x
|
ENVIRONMENT
|
Immersion
|
1 meter
|
|
Operating Temp.
|
-32º C / +70º C, -25.6° F / +158° F
|
|
Weapon Shock
|
All 5.56MM, 7.62MM and .30 CAL weapons
|
*Specifications may change without notice
