SkyStar 100/180 Mini-Aerostat Surveillance Balloon

June 11, 2014

Related To:

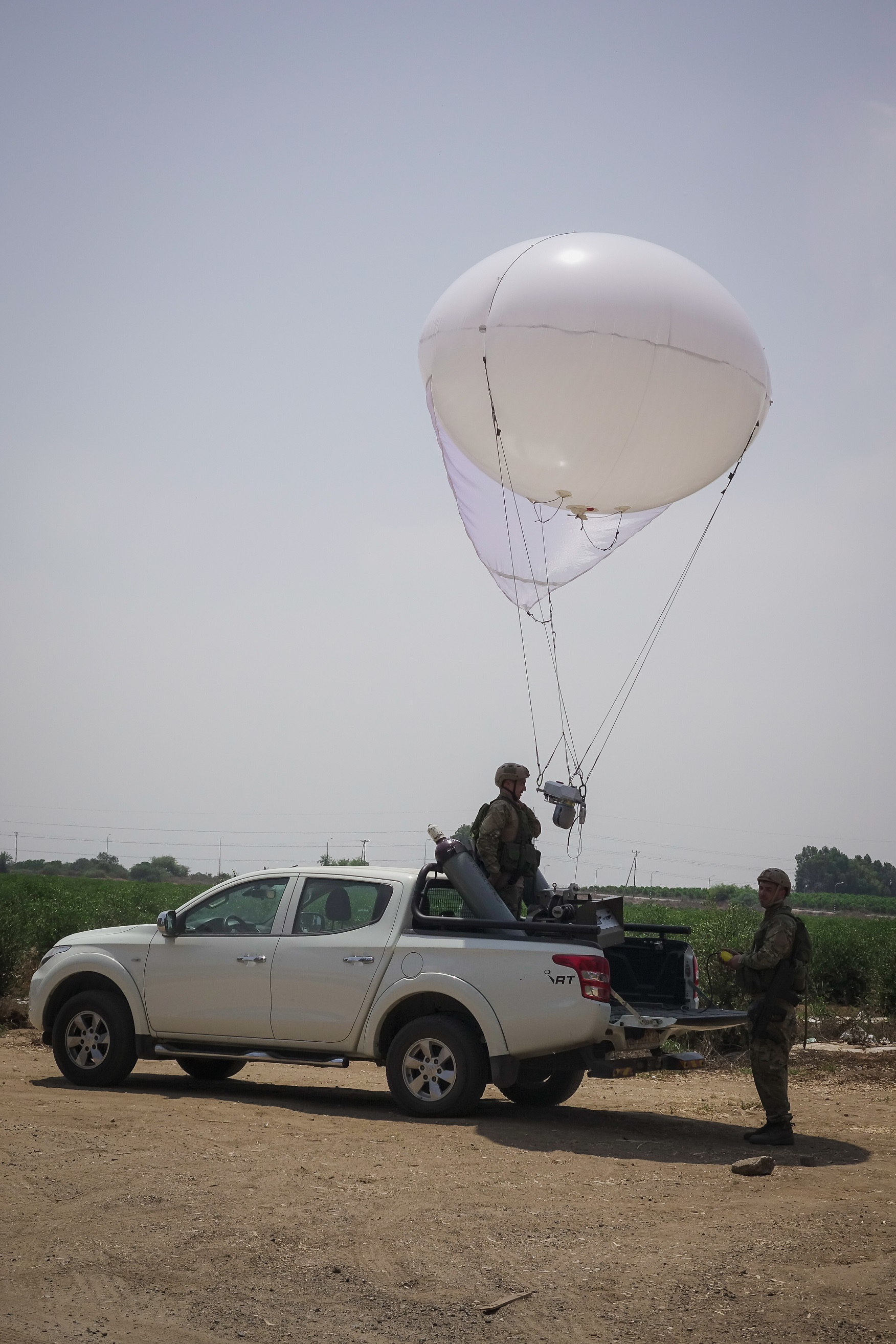

The Skystar 100 Aerostat is a mini tactical balloon system, ideal for close surveillance and reconnaissance missions. The system is compact, robust, and can be transported, assembled, launched and operated by two people after minimal training, providing field commanders with real-time reconnaissance capability. The updated system includes an HD payload operational day and night, as well as other reconnaissance and communication systems. Backpack or pickup truck transportable, the system can be assembled and launched in only 15 minutes, up to 1,000 feet. The Skystar 100 is operational under extreme weather conditions with low operational and maintenance costs. The system’s PCS has a 1 km operational range from the aerostat.

The system offers highly precise movement detection and enhanced target tracking capabilities, and can provide high-quality images while operating at long distances.

The SkyStar 180 System is a small size, mobile aerostat designed for tactical mid-range surveillance and public safety, police, and military applications. Based on a towable trailer, the system has a stabilized day/night electro-optical payload suspended from a helium filled aerostat, tethered to a ground system. It operates continuously at wind velocity of up to 40 knots, and can lift a payload of up to 20 kg, providing surveillance coverage from an altitude of up to 1,000 ft. for up to 72 hours, after which it is brought down for a 30-minute helium refill. Only 2 people are required to fully maintain the system.
