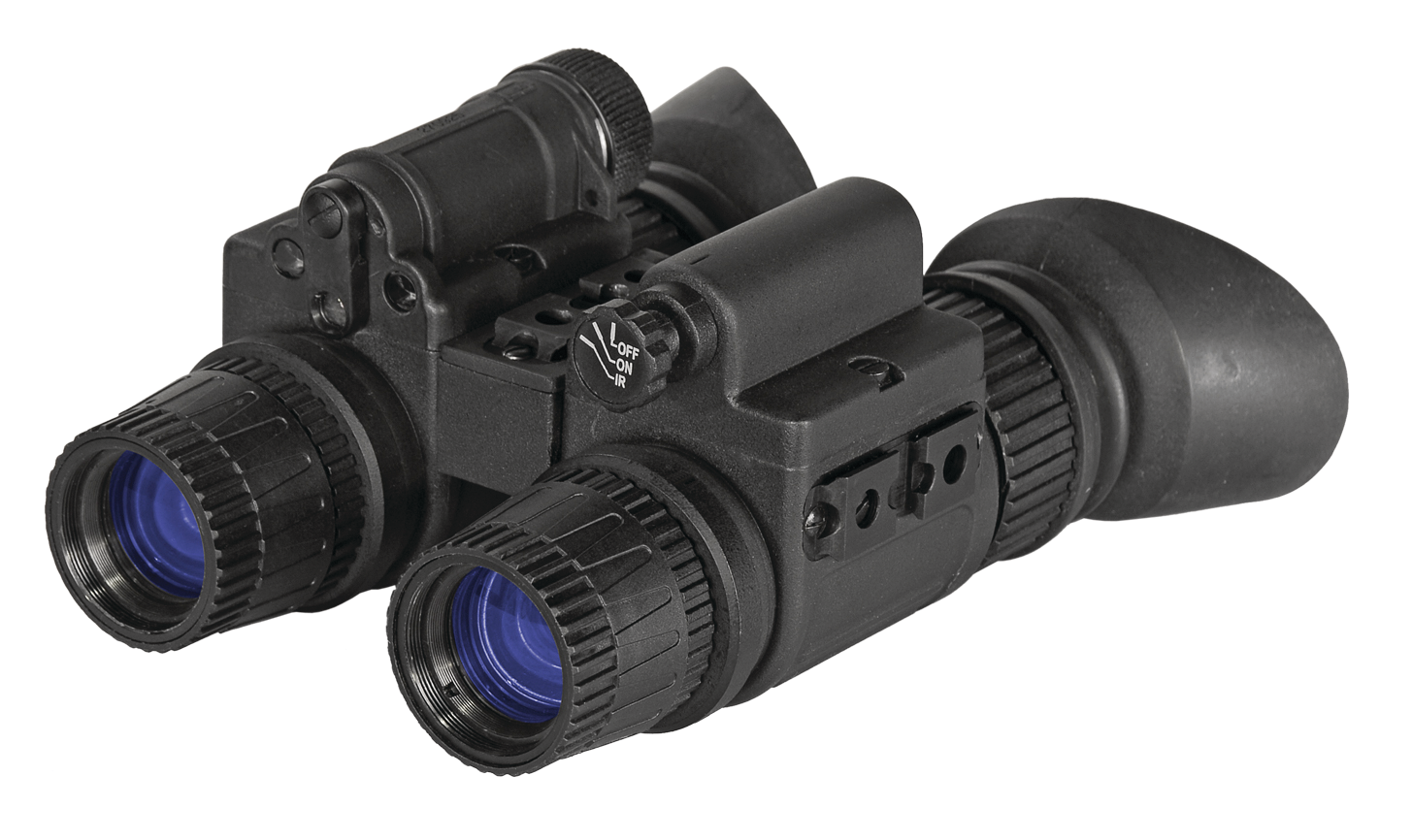

American Technologies Network, Corp.’s PS15-4 is a compact, lightweight dual Night Vision Goggles system utilizing two Autogated/Filmless image intensifier tubes, improving operational effectiveness for night vision goggle users. The Autogated/Filmless tube provides a higher signal to noise ration than standard Generation III resulting in better image quality under low-light conditions and further improves image resolution under high light conditions with a reduced halo effect that minimizes interference from bright light sources. The dual-tube design provides increased depth perception and outstanding clarity. A built-in IR lets the user easily read a map and function in a total darkness environment.
The ATN PS15-4 Night Vision Goggle System allows for hand-free use and comes with a goggle kit, lithium battery, lens tissue, lens cap, instructions and warranty card, all in a soft carrying case. An optional 3X A focal lens is available turning the PS15-4 into a binocular. Other options available include Universal Helmet Mount Kit, MICH Helmet Mount Kit, PASGT Helmet Mount Kit and an IR450-B4 Illuminator. ATN’s PS15-4 Night Vision Goggle System is also available in Gen. 2+, CGT, HPT, Gen. 3, Gen. 3A, and Gen 3 ITT Pinnacle.
ATN PS15-4 Specifications
- MIL-STD-810 Compliant
- IIT type: G4 Autogated/Filmless
- 1x Magnification
- 64-72 lp/mm Resolution
- Power Supply: one 1.5V AA or one 3V lithium (CR123A)
- 40-hour battery life
- F1:2, 27mm lens system
- 40-degree field of vision
- Direct controls
- 0.25m to infinity range of focus
- Operating Temperature: -40 degrees C to 50 degrees C
- Storage Temperature: -50 degrees C to 70 degrees C
- Waterproof environmental rating
- Dimensions: 120 mm by 114 mm by 69 mm (4.7 inches by 4.5 inches by 2.7 inches)
- 0.7 kg (1.54 pounds)
The ATN PS15-4 also features the Total Darkness IR System, Proshield Lens Coating, Automatic Brightness control, Bright Light cut-off, automatic shut-off system, low battery indicator, IR Indicator and an Infrared Illuminator built in with the flood lens.
