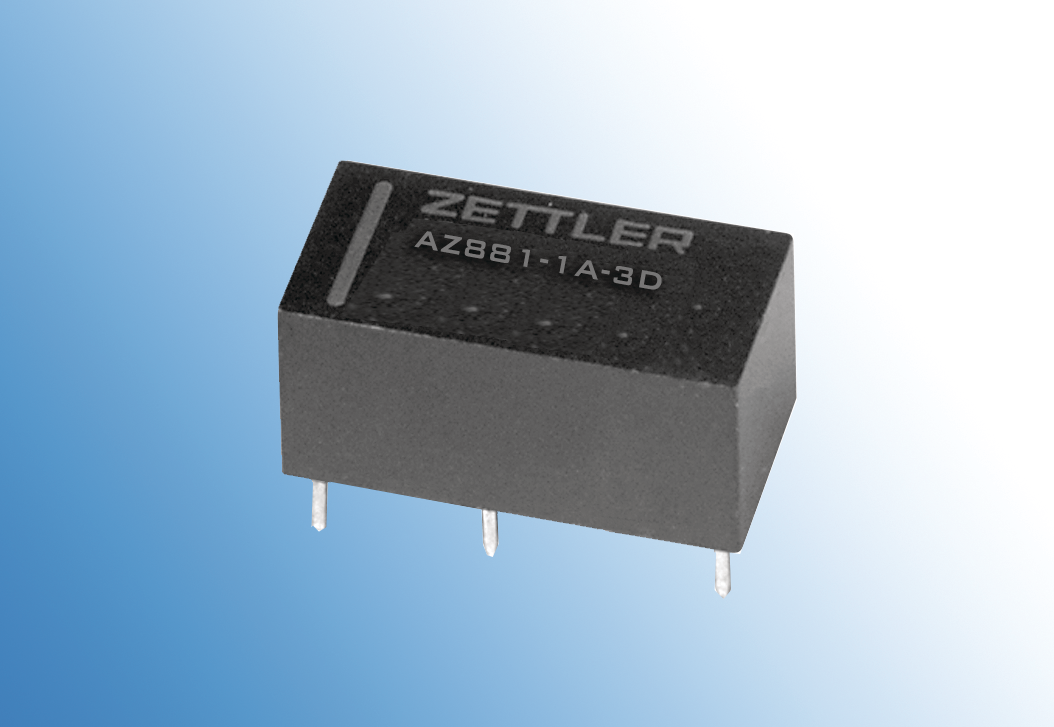

American Zettler, Inc. introduces AZ881 Series relays, which offer many of the features demanded by engineers designing HVAC, alarm systems, industrial controls, office equipment and consumer products. Valuable features include latching and non-latching versions (single or dual coil), 1 Form A, 2 Form A or 1 Form A, 1 Form B contact arrangements, low power consumption of 150 mW and a high dielectric strength of 3000 Vrms (5000 V surge) from contact to coil. The AZ881 is available with standard Class B insulation with Class F insulation optional. Other AZ881 versions offer gold plated contacts, epoxy sealed or flux tight construction and reversed polarity coils. The AZ881 is UL rated for 8 amps at 250 VAC, 5 amps at 30 VDC and 1/6 HP at 250 VAC and is fully RoHS compliant.
