ADDER Free-Flow CCS-Pro range of Multi-monitor Command and Control switches allows users to automatically and seamlessly switch between target computers simply by moving the mouse pointer from screen to screen. What makes this such a revolution is that you no longer need software to be installed on mission critical computers in order for it to work. ADDER Free-Flow resides on the CCS-PRO switch itself, sensing screen boundaries and instantaneously switching keyboard and mouse to the defined target computer. Free-Flow can be configured for almost any combination of screens.

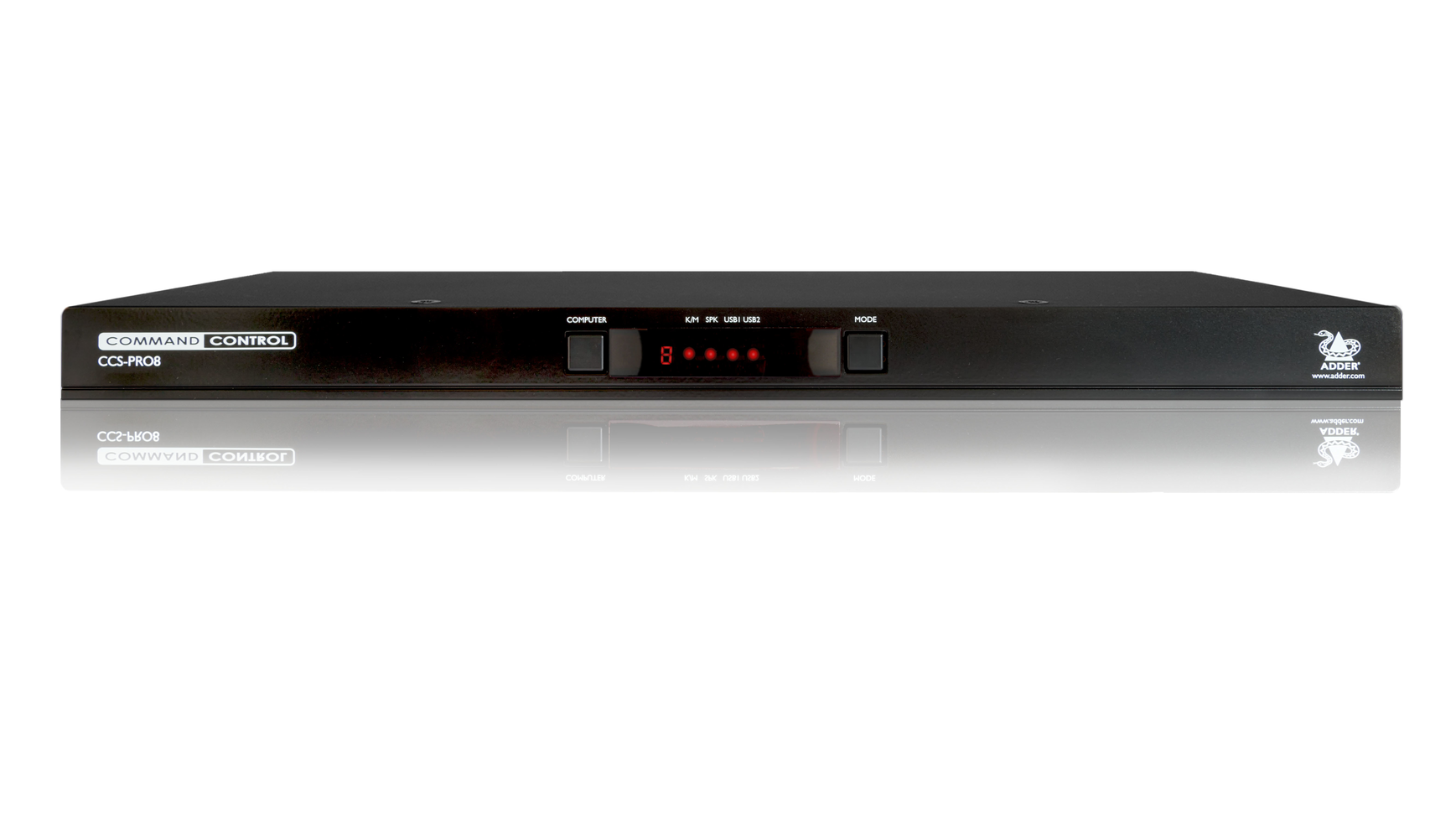

The ADDER CCS-PRO4 or ADDER CCS-PRO8 enables users to interact with up to four or eight computers using a single keyboard and mouse. The operator can simply move the cursor across screen borders to instantly select the computer they need to control providing the experience of a single desktop, saving both time and desk space.
These can be combined with the optional Screen Illumination Module, the CCS-XB, which provides an LED indicator to easily identify which screen is being controlled. The color and intensity can be controlled for each screen. A maximum of 10 illumination indicators can be supported. Each LED is housed in a sturdy molded enclosure and provided with an adhesive pad allowing the module to be fixed onto a screen bezel or other surface as required.
Key features include:
Flexible Audio: amalgamated audio from selected computer sources enables the user to hear all relevant audio and alarm events
USB True Emulation: USB 2.0 enables connection to any USB human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers
Multiple Switching Options: instant switching via one of seven different methods: Free-Flow; keyboard hotkeys; remote control; API; mouse buttons; front panel button; and serial control External API control, all with an open API for easy set up and integration into third party systems
Independent USB Device Selection: switching options enable the operator to use the keyboard and mouse on one computer whilst the USB peripherals are connected to other ones
Power Redundancy: dual power inlets are available for mission critical control
