AOR USA Inc.

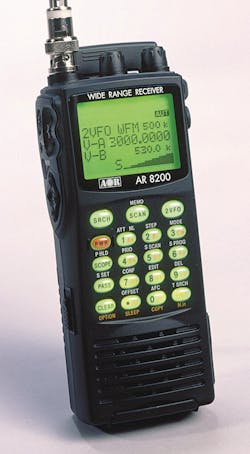

AR8200MK3-IR

Manufactured by AOR USA and available through Radio Reconnaissance Technologies, Inc. the AR8200MK3-IR has been modified to be fully Night Vision Goggle (NVG) compatible for government applications. When the IR (Infra-Red illumination) function is activated, the original green LED that illuminates the display and keypad is deactivated. The front keypad and the LCD screen are then illuminated by the IR LED that is only visible with NVG.

Main Features

  • TCXO for greater stability - performance not found in most desktop units!
  • Covers 500 KHz ~ 3 GHz - world's first handheld with this range!
  • Ni-MH batteries included (1500mAH)
  • 1,000 memory channels (20 banks x 50 channels)
  • 40 search banks
  • 2 VFOs
  • Alphanumeric channel and bank labels
  • Computer control and programming. (requires optional connection cable)
  • Download free control software from AOR web site!
  • "All Mode" reception includes "super narrow" FM plus wide and narrow AM in addition to USB, LSB, CW and standard AM and FM modes
  • True carrier reinsertion in USB and LSB modes. Includes 3 KHz SSB filter!
  • Detachable MW antenna with negative feedback
  • Optional internal slot cards expand the Mark III's capabilities. Choose from Memory Expansion (up to 4,000 memories), CTCSS Squelch & Search, Tone Eliminator, and Record Audio (saves up to 20 seconds of audio)
  • Tuning steps programmable in multiples of 50 Hz in all modes
  • 8.33 KHz airband step is correctly supported
  • Noise limiter and attenuator
  • Band activity "scope" display with "save trace" capability
  • Four-way side panel rocker switch allows one-hand operation
  • Large, backlit, multifunction display and illuminated keypad
  • Battery Save function with Low Battery indicator
  • Operates on 12 VDC external power
  • BNC antenna connector
  • Wide choice of accessories
