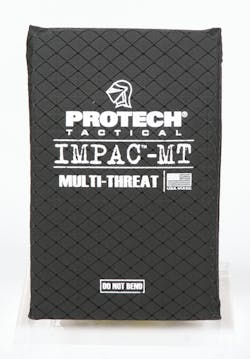

Safariland announced a change to its PROTECH IMPAC line of special threat plates. The PROTECH IMPAC-MT has been redesigned using high-performing uni-directional polyethylene and a fiberglass composite material. These plates continue to provide law enforcement officers with the same protection against special threat rounds as well as spike and edged blade instruments.
The IMPAC-MT has been tested* at an independent NIJ accredited laboratory in accordance with Safariland testing protocol against the threats listed below:
Ballistic Round |
Impacts Per Plate |
Test Velocity (fps) |
(Rounds tested on separate plates) |
||
Speer .357 Sig, 125 gr. FMJ |
3 |
1470 ± 30 fps |
Speer .44 Mag, 240 gr. SJHP |
1 |
1430 ± 30 fps |
Win. 9 mm +P+, 127 gr. SXT |
3 |
1250 ± 30 fps |
Speer .357 Sig, 125 gr. GDHP |
3 |
1375 ± 30 fps |
Norinco 7.62 x 25 mm Tokarev, 85 gr. FMJ |
3 |
1530 ± 30 fps |
FN 5.7 x 28 mm, 28 gr. SS195LF (Belgium) |
3 |
2075 ± 30 fps |
FN 5.7 x 28 mm, 40 gr. SS197 (Blue Tip) |
3 |
1740 ± 30 fps |
(Frangible) Remington 9mm +P, 101 gr. Plated Disintegrator Bullet |
3 |
1096 ± 30 fps |
(IQ) Aquila 9mm, 65 gr. IQ Bullet |
3 |
1630 ± 30 fps |
Spike/Edge Weapons |
# of Drops |
Strike/Overstrike Energy (ft. lbf) |
(Weapons tested on separate plates) |
||
-- Spike [Protection Level 3] |
3 |
E1: 31.7 ± 0.44 / E2: 47.9 ± 0.59 |
-- Knife Blade, P1 Edge Blade [Protection Level 3] |
3 |
E1: 31.7 ± 0.44 / E2: 47.9 ± 0.59 |
-- Knife Blade, S1 Edge Blade [Protection Level 3] |
3 |
E1: 31.7 ± 0.44 / E2: 47.9 ± 0.59 |
* The IMPAC-MT has not been tested or certified in accordance with NIJ 2005 Interim Requirements, NIJ Standard-0101.06 or NIJ Standard-0115.00. The IMPAC-MT plate should always be used in conjunction with an NIJ certified flexible armor vest.
All IMPAC style-plates are offered in four different sizes including a 5” x 7” for shorter torso lengths, a standard sized 5” x 8”, a 7” x 9” for expanded torso protection and a 10” x 12” shooter’s cut.
The PROTECH line of IMPAC special threat plates is now available in five styles:
- IMPAC-HT for high velocity handgun threat protection
- IMPAC-CT/DT for spike and edged blade and duty threat protection
- IMPAC-MT for high velocity handgun, spike and edged blade threat protection
- IMPAC-RT for rifle threat protection
- IMPAC-RT PLUS for enhanced rifle threat protection
